TEXAS INSTRUMENTS

德州仪器 (TI) 是一家全球化半导体设计与制造企业,凭借 80,000+ 模拟 IC 与嵌入式处理器产品、各类软件以及最大规模的销售和技术支持不断开拓创新。

TLV3012-EP

分类: 微电路 / 半导体集成电路 / 接口电路 / 电压比较器
数据:

简介: 具有推挽输出的增强型产品微功耗单路比较器

Number of channels: 1 Output type: Push-Pull Propagation delay time (µs): 2 Vs (max) (V): 5.5 Vs (min) (V): 1.8 Vos (offset voltage at 25°C) (max) (mV): 15 Iq per channel (typ) (mA): 0.0028 Input bias current (±) (max) (nA): 0.01 Rail-to-rail: In Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Features: Internal Reference VICR (max) (V): 5.7 VICR (min) (V): -0.2 Number of channels: 1 Output type: Push-Pull Propagation delay time (µs): 2 Vs (max) (V): 5.5 Vs (min) (V): 1.8 Vos (offset voltage at 25°C) (max) (mV): 15 更多

Iq per channel (typ) (mA): 0.0028 Input bias current (±) (max) (nA): 0.01 Rail-to-rail: In Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Features: Internal Reference VICR (max) (V): 5.7 VICR (min) (V): -0.2

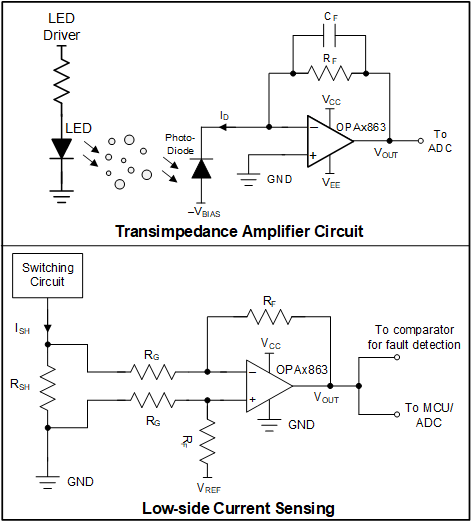

OPA4863

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
数据:

简介: 四通道低功耗 110MHz RRIO 电压反馈放大器

Architecture: Voltage FB Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12.6 GBW (typ) (MHz): 50 BW at Acl (MHz): 110 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 105 Vn at flatband (typ) (nV√Hz): 5.9 Vn at 1 kHz (typ) (nV√Hz): 5.9 Iq per channel (typ) (mA): 0.7 Vos (offset voltage at 25°C) (max) (mV): 1.3 Rail-to-rail: In, Out Features: Output short-circuit protection, Overload power limit, Shutdown Rating: Catalog Operating temperature range (°C): -40 to 125 CMRR (typ) (dB): 120 Input bias current (max) (pA): 730000 Offset drift (typ) (µV/°C): 1 Iout (typ) (mA): 30 更多

2nd harmonic (dBc): -129 3rd harmonic (dBc): -138 Frequency of harmonic distortion measurement (MHz): 0.02 Architecture: Voltage FB Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12.6 GBW (typ) (MHz): 50 BW at Acl (MHz): 110 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 105 Vn at flatband (typ) (nV√Hz): 5.9 Vn at 1 kHz (typ) (nV√Hz): 5.9 Iq per channel (typ) (mA): 0.7 Vos (offset voltage at 25°C) (max) (mV): 1.3 Rail-to-rail: In, Out Features: Output short-circuit protection, Overload power limit, Shutdown Rating: Catalog Operating temperature range (°C): -40 to 125 CMRR (typ) (dB): 120 Input bias current (max) (pA): 730000 Offset drift (typ) (µV/°C): 1 Iout (typ) (mA): 30 2nd harmonic (dBc): -129 3rd harmonic (dBc): -138 Frequency of harmonic distortion measurement (MHz): 0.02

INA310A-Q1

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 其他放大器
数据:

简介: 具有比较器和基准、符合 AEC-Q100 标准的 -4V 至 110V、1.3MHz 超精密电流检测放大器

Product type: Analog output with integrated comparator Common-mode voltage (max) (V): 110 Common-mode voltage (min) (V): -4 Input offset (±) (max) (µV): 20, 30, 50, 80, 150 Input offset drift (±) (typ) (µV/°C): 0.025 Voltage gain (V/V): 20, 50, 100, 200, 500 CMRR (min) (dB): 140 Bandwidth (kHz): 900, 1000, 1300 Supply voltage (max) (V): 20 Supply voltage (min) (V): 2.7 Iq (max) (mA): 2.25 Number of channels: 1 Comparators (#): 1 Slew rate (V/µs): 2.5 Features: Alert Function, Low-side Capable, Ultra precise Rating: Automotive TI functional safety category: Functional Safety-Capable Operating temperature range (°C): -40 to 125 Product type: Analog output with integrated comparator Common-mode voltage (max) (V): 110 更多

Common-mode voltage (min) (V): -4 Input offset (±) (max) (µV): 20, 30, 50, 80, 150 Input offset drift (±) (typ) (µV/°C): 0.025 Voltage gain (V/V): 20, 50, 100, 200, 500 CMRR (min) (dB): 140 Bandwidth (kHz): 900, 1000, 1300 Supply voltage (max) (V): 20 Supply voltage (min) (V): 2.7 Iq (max) (mA): 2.25 Number of channels: 1 Comparators (#): 1 Slew rate (V/µs): 2.5 Features: Alert Function, Low-side Capable, Ultra precise Rating: Automotive TI functional safety category: Functional Safety-Capable Operating temperature range (°C): -40 to 125

INA310B-Q1

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 其他放大器
数据:

简介: 具有比较器和基准、符合 AEC-Q100 标准的 -4V 至 110V、1.3MHz 高精度电流检测放大器

Product type: Analog output with integrated comparator Common-mode voltage (max) (V): 110 Common-mode voltage (min) (V): -4 Input offset (±) (max) (µV): 150, 200, 250, 300, 500 Input offset drift (±) (typ) (µV/°C): 0.1 Voltage gain (V/V): 20, 50, 100, 200, 500 CMRR (min) (dB): 120 Bandwidth (kHz): 900, 1000, 1300 Supply voltage (max) (V): 20 Supply voltage (min) (V): 2.7 Iq (max) (mA): 2.25 Number of channels: 1 Comparators (#): 1 Slew rate (V/µs): 2.5 Features: Alert Function, High precision, Low-side Capable Rating: Automotive TI functional safety category: Functional Safety-Capable Operating temperature range (°C): -40 to 125 Product type: Analog output with integrated comparator Common-mode voltage (max) (V): 110 更多

Common-mode voltage (min) (V): -4 Input offset (±) (max) (µV): 150, 200, 250, 300, 500 Input offset drift (±) (typ) (µV/°C): 0.1 Voltage gain (V/V): 20, 50, 100, 200, 500 CMRR (min) (dB): 120 Bandwidth (kHz): 900, 1000, 1300 Supply voltage (max) (V): 20 Supply voltage (min) (V): 2.7 Iq (max) (mA): 2.25 Number of channels: 1 Comparators (#): 1 Slew rate (V/µs): 2.5 Features: Alert Function, High precision, Low-side Capable Rating: Automotive TI functional safety category: Functional Safety-Capable Operating temperature range (°C): -40 to 125

OPA328

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
数据:

简介: 零交叉、50μV 失调电压、40MHz 宽带宽、RRIO、精密 CMOS 运算放大器

Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.2 Vos (offset voltage at 25°C) (max) (mV): 0.05 GBW (typ) (MHz): 40 Features: EMI Hardened, Zero Crossover, e-Trim™ Slew rate (typ) (V/µs): 30 Rail-to-rail: In, Out Offset drift (typ) (µV/°C): 0.15 Iq per channel (typ) (mA): 3.8 Vn at 1 kHz (typ) (nV√Hz): 9.8 CMRR (typ) (dB): 120 Rating: Catalog Operating temperature range (°C): -40 to 125 Input bias current (max) (pA): 1 Iout (typ) (A): 0.065 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): -0.1 Output swing headroom (to negative supply) (typ) (V): 0.005 更多

Output swing headroom (to positive supply) (typ) (V): 0.005 THD + N at 1 kHz (typ) (%): 0.0001 Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 5.5 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.2 Vos (offset voltage at 25°C) (max) (mV): 0.05 GBW (typ) (MHz): 40 Features: EMI Hardened, Zero Crossover, e-Trim™ Slew rate (typ) (V/µs): 30 Rail-to-rail: In, Out Offset drift (typ) (µV/°C): 0.15 Iq per channel (typ) (mA): 3.8 Vn at 1 kHz (typ) (nV√Hz): 9.8 CMRR (typ) (dB): 120 Rating: Catalog Operating temperature range (°C): -40 to 125 Input bias current (max) (pA): 1 Iout (typ) (A): 0.065 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): -0.1 Output swing headroom (to negative supply) (typ) (V): 0.005 Output swing headroom (to positive supply) (typ) (V): 0.005 THD + N at 1 kHz (typ) (%): 0.0001

OPA4992-Q1

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
数据:

简介: 汽车类、四通道、40V、10.6MHz、轨到轨输入和输出、低失调电压、低噪声运算放大器

Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 40 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Rail-to-rail: In, Out GBW (typ) (MHz): 10.6 Slew rate (typ) (V/µs): 32 Vos (offset voltage at 25°C) (max) (mV): 1 Iq per channel (typ) (mA): 2.4 Vn at 1 kHz (typ) (nV√Hz): 7 Rating: Automotive Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 0.25 Features: EMI Hardened, MUX Friendly CMRR (typ) (dB): 115 Iout (typ) (A): 0.065 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): 0 Input common mode headroom (to positive supply) (typ) (V): 0 Output swing headroom (to negative supply) (typ) (V): 0.048 Output swing headroom (to positive supply) (typ) (V): -0.048 更多

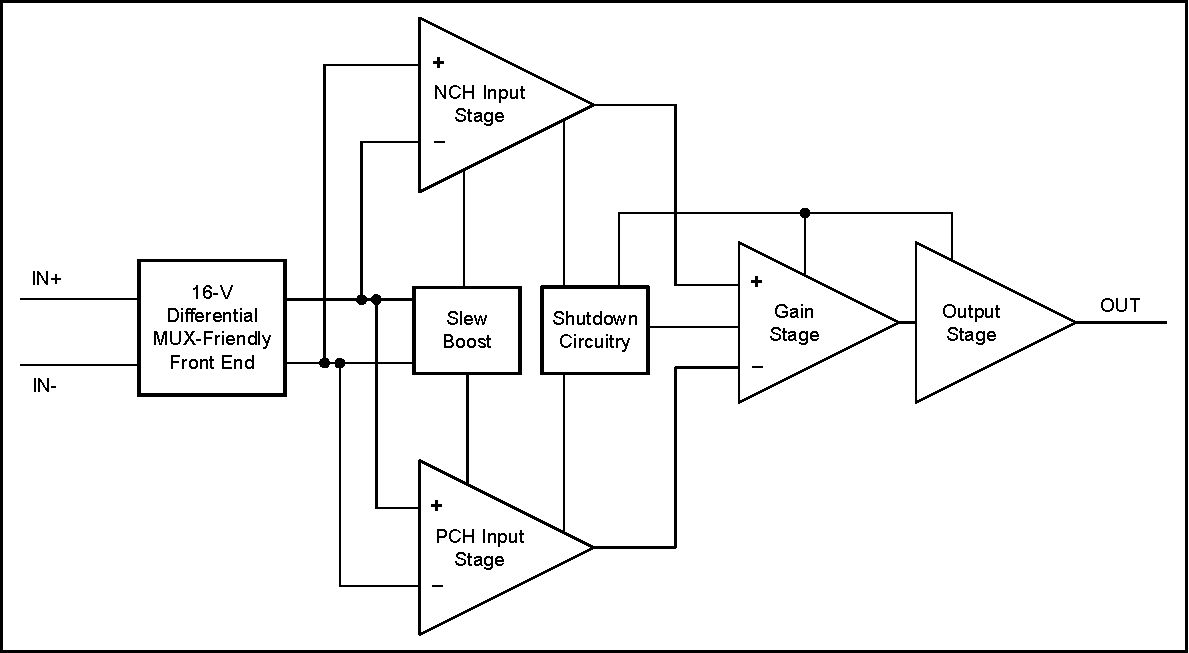

TLV9164-Q1

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
数据:

简介: 汽车类、四通道、16V、11MHz 轨到轨输入和输出运算放大器

Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Rail-to-rail: In, Out GBW (typ) (MHz): 11 Slew rate (typ) (V/µs): 33 Vos (offset voltage at 25°C) (max) (mV): 1 Iq per channel (typ) (mA): 2.4 Vn at 1 kHz (typ) (nV√Hz): 6.8 Rating: Automotive Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 0.25 Features: EMI Hardened, MUX Friendly, Small Size CMRR (typ) (dB): 110 Iout (typ) (A): 0.073 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): 0 Input common mode headroom (to positive supply) (typ) (V): 0 Output swing headroom (to negative supply) (typ) (V): 0.025 Output swing headroom (to positive supply) (typ) (V): -0.025 更多

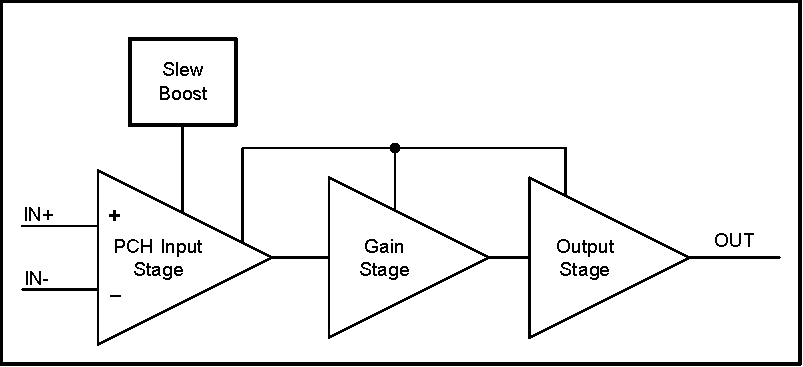

TLV9364-Q1

分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
数据:

简介: 汽车类、四通道、40V、10.6MHz 轨到轨输出运算放大器

Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 40 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5 Rail-to-rail: In to V-, Out GBW (typ) (MHz): 10.6 Slew rate (typ) (V/µs): 25 Vos (offset voltage at 25°C) (max) (mV): 1.7 Iq per channel (typ) (mA): 2.6 Vn at 1 kHz (typ) (nV√Hz): 8.5 Rating: Automotive Operating temperature range (°C): -40 to 125 Offset drift (typ) (µV/°C): 1.25 Features: Cost Optimized, EMI Hardened, Small Size CMRR (typ) (dB): 110 Iout (typ) (A): 0.06 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): 0 Input common mode headroom (to positive supply) (typ) (V): -2 Output swing headroom (to negative supply) (typ) (V): 0.06 Output swing headroom (to positive supply) (typ) (V): -0.06 更多

TLV9031

分类: 微电路 / 半导体集成电路 / 接口电路 / 电压比较器
数据:

简介: 具有推挽输出和备用引脚排列的单路低电压比较器

Number of channels: 1 Output type: Push-Pull Propagation delay time (µs): 0.1 Vs (max) (V): 5.5 Vs (min) (V): 1.65 Vos (offset voltage at 25°C) (max) (mV): 1.5 Iq per channel (typ) (mA): 0.016 Input bias current (±) (max) (nA): 0.005 Rail-to-rail: In Rating: Catalog Operating temperature range (°C): -40 to 125 Features: Fail-safe, POR VICR (max) (V): 5.5 VICR (min) (V): 0 Number of channels: 1 Output type: Push-Pull Propagation delay time (µs): 0.1 Vs (max) (V): 5.5 Vs (min) (V): 1.65 Vos (offset voltage at 25°C) (max) (mV): 1.5 更多

Iq per channel (typ) (mA): 0.016 Input bias current (±) (max) (nA): 0.005 Rail-to-rail: In Rating: Catalog Operating temperature range (°C): -40 to 125 Features: Fail-safe, POR VICR (max) (V): 5.5 VICR (min) (V): 0

TLV9031-Q1

分类: 微电路 / 半导体集成电路 / 接口电路 / 电压比较器
数据:

简介: 具有推挽输出和备用引脚排列的汽车类单路低电压比较器

Number of channels: 1 Output type: Push-Pull Propagation delay time (µs): 0.1 Vs (max) (V): 5.5 Vs (min) (V): 1.65 Vos (offset voltage at 25°C) (max) (mV): 1.5 Iq per channel (typ) (mA): 0.016 Input bias current (±) (max) (nA): 0.005 Rail-to-rail: In Rating: Automotive Operating temperature range (°C): -40 to 125 Features: Fail-safe, POR VICR (max) (V): 5.5 VICR (min) (V): 0 Number of channels: 1 Output type: Push-Pull Propagation delay time (µs): 0.1 Vs (max) (V): 5.5 Vs (min) (V): 1.65 Vos (offset voltage at 25°C) (max) (mV): 1.5 更多

Iq per channel (typ) (mA): 0.016 Input bias current (±) (max) (nA): 0.005 Rail-to-rail: In Rating: Automotive Operating temperature range (°C): -40 to 125 Features: Fail-safe, POR VICR (max) (V): 5.5 VICR (min) (V): 0
