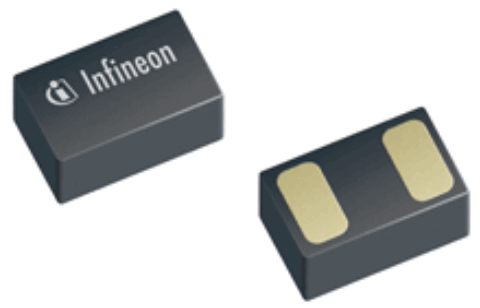

ESD121-B1-W0201
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: Low Clamping Voltage, Low Capacitance, Bi Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor)
C[L ]: 0.25pF
I[EFT ]: 30A
Protected Lines: 1
R[dyn](reverse): 0.91Ω
R[dyn](forward): 0.91Ω
V[ESD] max: 18.0kV
V[cl typ. reverse](TLP 16A): 24V
V[WM] max: 7.0V
C[L ] max: 0.5pF
I[R] max: 100.0nA
I[R]: 1.0nA
I[PP]: 2 A
I[R]: 0.1nA
V[ESD] max: 10.0kV
R[dyn](reverse): 1.8Ω
C[L ]: 0.13pF
R[dyn](forward): 1.8Ω
V[cl typ. reverse](@16A): 18.0V
Protected Lines: 1
V[cl typ. reverse](TLP 16A): 48
V[WM] max: 15.0V
I[R] max: 50.0nA
V[ESD] max: 10.0kV
R[dyn](reverse): 1.8Ω
C[L ]: 0.13pF
R[dyn](forward): 1.8Ω
V[cl typ. reverse](@16A): 48.0V
Protected Lines: 1
V[cl typ. reverse](TLP 16A): 48
V[WM] max: 15.0V
V[WM] min: -15.0V
I[R]: 0.1nA
Protected Lines: 1
C[L ]: 0.13pF
V[WM] max: 5.5V
V[cl typ. reverse](at 16A TLP): 25
V[cl typ. reverse](at 8A TLP): 16
I[R]: 0.1nA
R[dyn](reverse): 1.1Ω
V[ESD](IEC61000-4-2 contact) max: 14.0kV
I[PP]: 1.5A
I[EFT ]: 30A
C[L ] max: 0.25pF
V[WM] min: -5.5V
R[dyn](forward): 1.1Ω

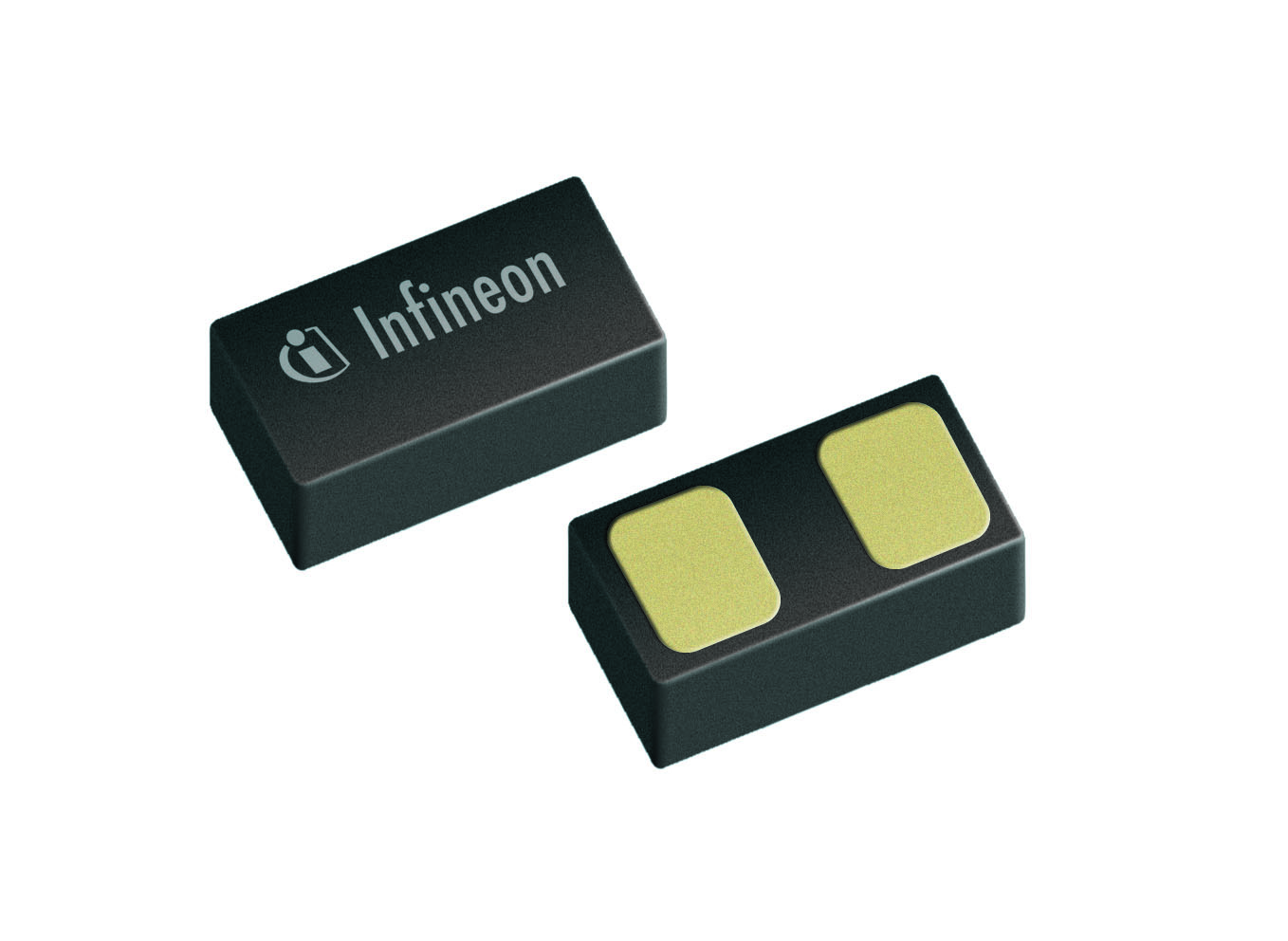

ESD120-B1-W0201
数据:
分类: 半导体分立器件和附件 / 二极管 / 普通二极管 / 瞬态抑制二极管
描述: Low Clamping Voltage, Low Capacitance, Bi Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor)
C[L ]: 0.28pF
I[EFT ]: 30A
Protected Lines: 1
R[dyn](reverse): 0.94Ω
R[dyn](forward): 0.94Ω
V[ESD] max: 15.0kV
V[cl typ. reverse](TLP 16A): 19V
V[WM] max: 2.1V
C[L ] max: 0.4pF
V[WM] min: -2.1V
I[R]: 1.0nA
I[R] max: 200.0nA
I[PP]: 1.5 A
C[L ]: 3.0pF
V[ESD] max: 18.0kV
R[dyn](reverse): 1.0Ω
R[dyn](forward): 1.0Ω
I[R]: 1.0nA
I[EFT ]: 40A
Protected Lines: 1
V[WM] max: 24.0V
V[cl typ. reverse](@16A): 51.0V
V[cl typ. reverse](TLP 16A): 51 V
I[PP]: 1.5 A
C[L ]: 0.2pF
I[EFT ]: 50A
I[R] max: 50.0nA
I[PP]: 3.5A
Protected Lines: 1
R[dyn](forward): 0.58Ω
R[dyn](reverse): 0.58Ω
V[ESD] max: 18.0kV
V[cl typ. reverse](TLP 16A): 12.5
V[cl typ. reverse](@16A): 12.0V
V[WM] max: 18.0V
C[L ] max: 0.35pF
V[WM] min: -18.0V
I[R]: 1.0nA
I[R] max: 30.0nA
I[PP]: 2A
Protected Lines: 1
R[dyn](forward): 0.8Ω
R[dyn](reverse): 0.8Ω
V[ESD] max: 15.0kV
V[cl typ. reverse](TLP 16A): 28V
V[cl typ. reverse](TLP 30A): 34V
C[L ]: 0.3pF
V[cl typ. reverse](@16A): 32.0V
V[WM] max: 18.0V
C[L ] max: 0.5pF
V[WM] min: -18.0V
I[EFT ]: 40 A
C[L ]: 0.3pF
I[EFT ]: 50A
I[R] max: 20.0nA
I[PP]: 7.5A
Protected Lines: 1
R[dyn](reverse): 0.28Ω
R[dyn](forward): 0.28Ω
V[ESD] max: 28.0kV
V[cl typ. reverse](TLP 16A): 7.7
V[WM] max: 2.1V
C[L ] max: 0.35pF
V[WM] min: -2.1V
I[R]: 0.1nA
C[L ]: 0.3pF
V[ESD] max: 12.0kV
R[dyn](forward): 0.6Ω
R[dyn](reverse): 0.6Ω
I[R]: 1.0nA
V[cl typ. reverse](TLP 16A): 14
V[cl typ. reverse](TLP 30A): 20
I[EFT ]: 50A
I[PP]: 3A
Protected Lines: 1
V[WM] max: 18.5V
