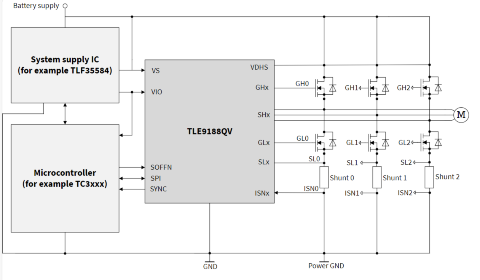

TLE9188QVW
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: TLE9188QVW is an advanced gate driver IC designed for controlling six external N-channel power MOSFETs for 3-phase motor drive applications in the automotive sector with ISO26262 ASIL-D compliance.
Channels: 3.0
Configuration: 3 phase
Input V[sm] max: 36.0V
Output Current: 1.5A
Technology: MOTIX™ Driver
Temperature max: 175.0°C
Turn Off Propagation Delay max: 70.0ns
Turn On Propagation Delay max: 70.0ns
Voltage range GHx,SHx: Max 60V
Rise/Fall time: Typ. 175ns
|Product Group|: Three Phase
Supply Voltage max: 36.0V
Driving Capability: 250 nC at 20kHz
Current Sense Amplifier: 3xADCs
Classification: ISO 26262-compliant
Qualification: Automotive
Operating Voltage max: 36.0V
Temperature: - 40°C - 175°C
Configuration: Three Phase
Voltage Class: 55.0V
Channels: 6.0
Isolation Type: Non-isolated
Output Current(Source): 0.35A
Output Current(Sink): 0.35A
Supply Voltage: NoneV
Driving Capability: 130nC at 20kHz
Current Sense Amplifier: none
Diagnostics: UV, OV, SCD, OT
Qualification: Automotive
Temperature: None°C
Classification: QM

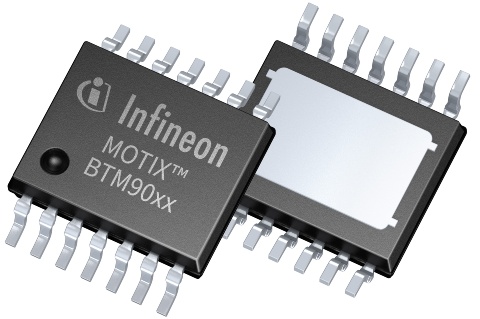

BTM9010EP
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ BTM9010EP is a fully integrated H-bridge motor driver with small footprint and adjustable slew rate at two levels for an improved EMC performance. It operates via direct interface.
Operating Voltage max: 40.0V
Diagnostics: Open load detection
Diagnostics: current sense
Protect: Overtemperature
Protect: undervoltage
Protect: overcurrent
Protect: short circuit
Protect: crosscurrent
Normal Operating Voltage Range: 7 V - 18 V
Digital interface: INA
Digital interface: INB
Digital interface: SEL
Digital interface: PWM
Pulse current (at 85°C)(for tpulse≤ 1 s): 5.2A
Pulse current (at 85°C)(for tpulse ≤ 10 s): 4.2A
Path resistance(at 25°C): 175.0mΩ
Product validation: AEC-Q100 (Grade 1)
I[D(lim)](multiple): min 10.0 A
Currently planned availability until at least: 2038
Technology: MOTIX™ Bridge
更多
R[DS (on)]: 87.5mΩ
Classification: ISO26262-ready
Temperature max: 150.0°C
RDSON_H(typ): 87.5mΩ
RDSON_L(typ): 87.5mΩ
Over current detection min: 10.0A
Supply Voltage absolute max ratings: 40.0V

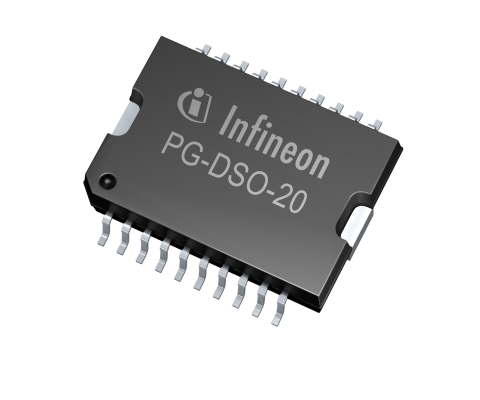

TLE7209-3R
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ TLE7209-3R is an intelligent full H-Bridge, designed for the control of DC and stepper motors in safety critical applications
R[DS (on)]: 150.0mΩ
I[q]: 20.0mA
I[D(lim)](multiple): 6.6 A
Diagnostics: SPI & Status Flag
Protect: OT
Protect: SC
Mounting: SMT
R[DS (on)](switch): 150.0mΩ
Protect: OC
Inhibit: Yes
Operating Voltage max: 28.0V
Technology: MOTIX™ Bridge
Currently planned availability until at least: 2033
Normal Operating Voltage Range: 5 V - 28 V
Temperature max: 150.0°C
RDSON_H(typ): 150.0mΩ
RDSON_L(typ): 150.0mΩ
Over current detection min: 6.6A
Supply Voltage absolute max ratings: 40.0V

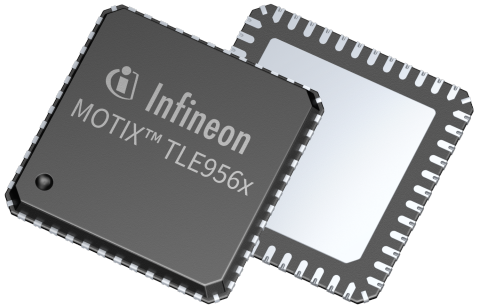

TLE9563-3QX
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ TLE9563-3QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges
|Product Group|: BLDC Motor System IC
Channels: 6.0
Configuration: Three Phase
Output Drivers: 1 x Dual-stage Charge Pump
Output Drivers: 3 x High-Side Switch 150 mA
Transceiver: 1 x CAN FD ISO 11898 - 2
Voltage Regulator Output((VCC1)): 5V / 250 mA
Wake-up Inputs: Wake Pins, CAN
Qualification: Automotive
Temperature: - 40°C - 150°C
Technology: MOTIX™ SBC
Operating Voltage max: 28.0V
Supply Voltage max: 28.0V
Driving Capability: 90nC at 20kHz
Current Sense Amplifier: 1xCSA
Temperature max: 150.0°C
Classification: ISO26262-ready
Family: MOTIX™ motor system ICs (SBC)
Currently planned availability until at least: 2038
TLE9560-3QX
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ TLE9560-3QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges
Channels: 4.0
Configuration: Half Bridge
Transmission Rate: 5.0MBit/s
Voltage Regulator Output((VCC1)): 5V / 250 mA
Output Drivers: 1 x Dual-stage Charge Pump
Output Drivers: 4 x High-Side Switch 150 mA
Quiescent Current: 18 μA (typ) Sleep Mode
Wake-up Inputs: Wake Pins, CAN, LIN
Temperature: - 40°C - 150°C
Technology: MOTIX™ SBC
Operating Voltage max: 28.0V
Currently planned availability until at least: 2038
Gate current max: 100.0mA
Transceiver: 1 x LIN
Transceiver: 1 x CAN FD
Family: MOTIX™ motor system ICs (SBC)
Interfaces: SPI
Qualification: Automotive
Classification: ISO26262-ready
Temperature max: 150.0°C
更多
Supply Voltage absolute max ratings: 40.0V
Supply Voltage max: 28.0V

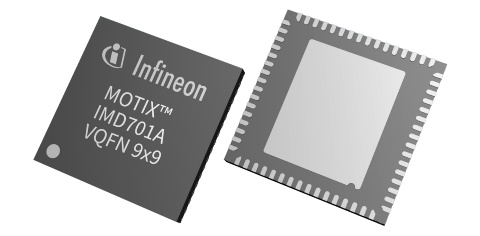

IMD701A-Q064X128-AA
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: MOTIX™ fully programmable motor controller combining microcontroller and gate driver IC
Channels: 6.0
Configuration: MCU + three phase
Isolation Type: Level shift
Output Current(Source): 1.5A
Qualification: Industrial
Temperature: - 40°C - 125°C
Output Current(Sink): 1.5A
Flash: 128.0kByte
Operating Voltage max: 60.0V
Technology: MOTIX™ MCU (SiP)
TLE7209-2R
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: MOTIX™ TLE 7209-2R is a full H-Bridge, designed for control of DC and stepper motors in safety critical applications
R[DS (on)](switch): 150.0mΩ
R[DS (on)]: 150.0mΩ
I[q]: 20.0mA
Operating Voltage max: 28.0V
Diagnostics: SPI & Status Flag
I[D(lim)](multiple): 6.6 A
Protect: OT
Protect: SC
Mounting: SMT
Protect: OC
Inhibit: Yes
Normal Operating Voltage Range: 5 V - 28 V
Temperature max: 150.0°C
RDSON_H(typ): 150.0mΩ
RDSON_L(typ): 150.0mΩ
Over current detection min: 6.6A
Supply Voltage absolute max ratings: 40.0V
TLE9562QX
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: The MOTIX™ TLE9562QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges
Quiescent Current: 18 μA (typ) Sleep Mode
Channels: 8.0
Configuration: Half Bridge
Transmission Rate max: 5.0MBit/s
Voltage Regulator Output((VCC1)): 5V / 250 mA
Output Drivers: 1 x Dual-stage Charge Pump
Output Drivers: 4 x High-Side Switch 150 mA
Wake-up Inputs: Wake Pins, CAN, LIN
Temperature: - 40°C - 150°C
Technology: MOTIX™ SBC
Operating Voltage max: 28.0V
Currently planned availability until at least: 2038
Family: MOTIX™ motor system ICs (SBC)
Interfaces: SPI
Qualification: Automotive
Classification: ISO26262-ready
Temperature max: 150.0°C
Transceiver: 1 x CAN FD
Transceiver: 1 x LIN
Gate current max: 100.0mA
更多
Supply Voltage absolute max ratings: 40.0V
Supply Voltage max: 28.0V
