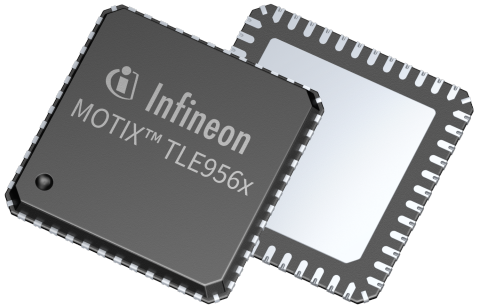

TLE9562-3QXJ

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE9562-3QXJ is a multifunctional system IC, conforms to VeLIO (Vehicle LAN Interoperability) requirements with integrated power supply, communication interfaces and multiple half-bridges in PG-VQFN-48 package.

Channels: 8.0 Configuration: Half Bridge Operating Voltage max: 28.0V Output Drivers: 1 x Dual-stage Charge Pump Output Drivers: 4 x High-Side Switch 150 mA Technology: MOTIX™ SBC Voltage Regulator Output: 5V / 250 mA Wake-up Inputs: Wake Pins Wake-up Inputs: CAN Wake-up Inputs: LIN Quiescent Current: 18 μA (typ) Sleep Mode Transmission Rate max: 5.0MBit/s Currently planned availability until at least: 2038 Temperature: - 40°C - 150°C Family: MOTIX™ motor system ICs (SBC) Interfaces: SPI Qualification: Automotive Classification: ISO26262-ready Temperature max: 150.0°C Transceiver: 1 x CAN FD 更多

Transceiver: 1 x LIN Gate current max: 100.0mA Supply Voltage absolute max ratings: 40.0V Supply Voltage max: 28.0V

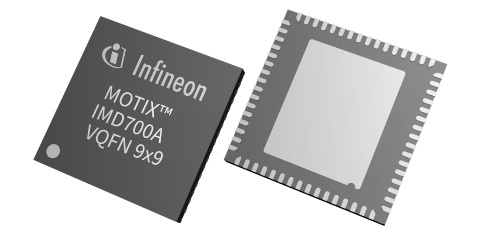

IMD700A-Q064X128-AA

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ fully programmable motor controller combining microcontroller and gate driver IC

Channels: 6.0 Configuration: MCU + three phase Isolation Type: Level shift Output Current(Source): 1.5A Qualification: Industrial Temperature: - 40°C - 125°C Output Current(Sink): 1.5A Flash: 128.0kByte Operating Voltage max: 60.0V Technology: MOTIX™ MCU (SiP)

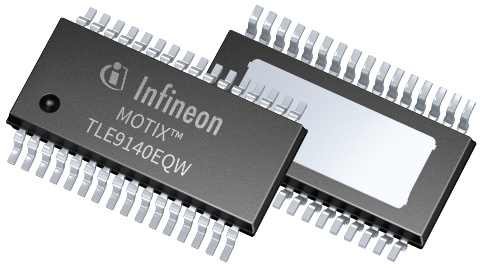

TLE9140EQW

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 3-Phase universal BLDC Motor Gate Driver IC for diverse voltage applications ranging from 8V~72V

Channels: 3.0 Configuration: 3 phase Technology: MOTIX™ Driver Input V[sm] max: 72.0V Output Current: 480.0mA Turn Off Propagation Delay: 400.0ns Turn On Propagation Delay: 400.0ns V[BS] UVLO: 8.0V Voltage Class: 110.0V Supply Voltage max: 72.0V Temperature max: 175.0°C Current Sense Amplifier: - Driving Capability: 230 nC at 20 kHz Qualification: Automotive Classification: ISO 26262-compliant Family: MOTIX™ gate driver ICs Currently planned availability until at least: 2038 Operating Voltage max: 72.0V Temperature: - 40°C - 175°C

TLE9180D-32QK

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ TLE9180D-32QK motor gate driver IC for 24 V and 48 V brushless DC motor control and safety-relevant applications

Channels: 6.0 Input Vcc: NoneV Output Current: 2.0A Isolation Type: Non-isolated Technology: MOTIX™ Driver Temperature: None°C Turn Off Propagation Delay: 35.0ns Turn On Propagation Delay: 35.0ns VBS UVLO(Off): 6.5V Voltage Class: 90.0V Supply Voltage: NoneV Driving Capability: 300nC at 20kHz Current Sense Amplifier: 3xCSA Configuration: Three Phase Qualification: Automotive Package: PG-LQFP-64 Classification: ISO 26262-compliant

TLE9185QX

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ TLE9185QX is a three-phase driver IC with integrated power supply and support features in a PG-VQFN-48 power package

Supply Voltage: NoneV Current Sense Amplifier: 1xCSA Driving Capability: 90nC at 20kHz Temperature: None°C Qualification: Automotive Diagnostics: SC, OT, UV, OV, OL Classification: ISO ready

TLE9183QK

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ TLE9183QK motor gate driver IC for 12 V brushless DC motor control and safety-relevant applications

Channels: 6.0 Configuration: Three Phase Input Vcc: NoneV Isolation Type: Non-isolated Output Current: 2.0A Technology: MOTIX™ Driver Temperature: None°C Turn Off Propagation Delay: 35.0ns Turn On Propagation Delay: 35.0ns VBS UVLO(Off): 6.5V Voltage Class: 90.0V Driving Capability: 300nC at 20kHz Current Sense Amplifier: 3xCSA Supply Voltage: NoneV Classification: ISO-26262 compliant Qualification: Automotive

TLE9185QXV33

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE9185QX V33 is a three-phase driver IC with integrated power supply and support features for motor control in automotive applications.

Supply Voltage: NoneV Current Sense Amplifier: 1xCSA Driving Capability: 90nC at 20kHz Diagnostics: SC, OT, UV, OV, OL Qualification: Automotive Temperature: None°C Classification: ISO ready

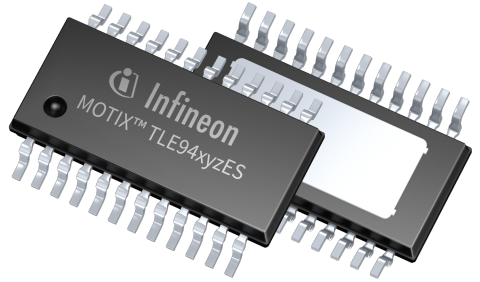

TLE94108ES

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE94108ES is a protected eight-fold half-bridge driver designed especially for automotive motion control applications

Temperature: - 40°C - 150°C Technology: MOTIX™ Bridge I[D(lim)](multiple): 8 x 0.9A Inhibit: Yes I[q]: 0.6µA Mounting: SMT R[DS (on) ] (multiple): 850 mOhm Diagnostics: OC, TW, TSD, PSF, OL, SPI_ERR, NPOR Protect: SC, OT, UV, OV, OL Operating Voltage max: 20.0V Currently planned availability until at least: 2037 RDSON_H(typ): 850.0mΩ RDSON_L(typ): 850.0mΩ Over current detection min: 0.9A Supply Voltage absolute max ratings: 40.0V

TLE94106ES

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: The MOTIX™ TLE94106ES is a protected six-fold half-bridge driver designed especially for automotive motion control applications

R[DS (on) ] (multiple): 850 mOhm Protect: SC, OT, UV, OV, OL Mounting: SMT I[q]: 0.6µA I[D(lim)](multiple): 6 x 0.9A Diagnostics: OC, TW, TSD, PSF, OL, SPI_ERR, NPOR Inhibit: Yes Temperature: - 40°C - 150°C Operating Voltage max: 20.0V Technology: MOTIX™ Bridge Currently planned availability until at least: 2037 RDSON_H(typ): 850.0mΩ RDSON_L(typ): 850.0mΩ Over current detection min: 0.9A Supply Voltage absolute max ratings: 40.0V

TLE7189QK

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

Configuration: Three Phase Voltage Class: 55.0V Channels: 6.0 Isolation Type: Non-isolated Output Current(Sink): 1.5A Output Current(Source): 0.8A Supply Voltage: NoneV Driving Capability: 170nC at 20kHz Current Sense Amplifier: 3xCSA Diagnostics: UV, OV, SCD, OT, VDD supervision Qualification: Automotive Temperature: None°C Classification: QM
