TMCS1133
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 具有 AFR 和警报功能的 ±1300V 增强型隔离、80ARMS、1MHz 霍尔效应电流传感器
Continuous current (max) (A): 80
Working isolation voltage (VIOWM) (Vrms): 600
Sensitivity (typ) (mV/mT): 25, 33, 50, 66, 75, 100, 150
Input offset current (±) (max) (mA): 30, 33, 40, 45, 130, 150, 160, 180, 200
Input offset current drift (±) (typ) (µA/°C): 200, 400, 670, 757.6, 1000, 1150, 1300, 1400, 1800, 2000
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 14
Small-signal bandwidth (kHz): 1000
Sensitivity error (%): 0.4
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 8.1
Clearance (min) (mm): 8.1
Isolation rating: Reinforced
Surge isolation voltage (VIOSM) (VPK): 10000
Continuous current (max) (A): 80
Working isolation voltage (VIOWM) (Vrms): 600
Sensitivity (typ) (mV/mT): 25, 33, 50, 66, 75, 100, 150
更多
Input offset current (±) (max) (mA): 30, 33, 40, 45, 130, 150, 160, 180, 200
Input offset current drift (±) (typ) (µA/°C): 200, 400, 670, 757.6, 1000, 1150, 1300, 1400, 1800, 2000
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 14
Small-signal bandwidth (kHz): 1000
Sensitivity error (%): 0.4
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 8.1
Clearance (min) (mm): 8.1
Isolation rating: Reinforced
Surge isolation voltage (VIOSM) (VPK): 10000
TMCS1126-Q1
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 具有 AFR、基准和警报功能且符合 AEC-Q100 标准的 80ARMS、500kHz 霍尔效应电流传感器
Continuous current (max) (A): 80
Sensitivity (typ) (mV/mT): 25, 33, 50, 75, 100, 150
Input offset current (±) (max) (mA): 40, 42, 45, 60
Input offset current drift (±) (typ) (µA/°C): 133, 150, 160, 200
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 14
Small-signal bandwidth (kHz): 500
Sensitivity error (%): 0.75
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 8.1
Clearance (min) (mm): 8.1
Isolation rating: Reinforced
Surge isolation voltage (VIOSM) (VPK): 10000
Continuous current (max) (A): 80
Sensitivity (typ) (mV/mT): 25, 33, 50, 75, 100, 150
Input offset current (±) (max) (mA): 40, 42, 45, 60
更多
Input offset current drift (±) (typ) (µA/°C): 133, 150, 160, 200
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 14
Small-signal bandwidth (kHz): 500
Sensitivity error (%): 0.75
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 8.1
Clearance (min) (mm): 8.1
Isolation rating: Reinforced
Surge isolation voltage (VIOSM) (VPK): 10000
TMCS1123
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 具有 AFR、基准和警报功能的 ±1300V 增强型隔离、80Arms 250kHz 霍尔效应电流传感器
Continuous current (max) (A): 80
Working isolation voltage (VIOWM) (Vrms): 600
Sensitivity (typ) (mV/mT): 25, 50, 75, 100, 150
Input offset current (±) (max) (mA): 40, 42, 45, 60
Input offset current drift (±) (typ) (µA/°C): 133, 150, 160, 200
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 14
Small-signal bandwidth (kHz): 250
Sensitivity error (%): 0.4
Sensitivity error drift (±) (max) (ppm/°C): 50
Propagation delay time (typ) (ns): 130
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 8.1
Clearance (min) (mm): 8.1
Isolation rating: Reinforced
Surge isolation voltage (VIOSM) (VPK): 10000
Continuous current (max) (A): 80
Working isolation voltage (VIOWM) (Vrms): 600
更多
Sensitivity (typ) (mV/mT): 25, 50, 75, 100, 150
Input offset current (±) (max) (mA): 40, 42, 45, 60
Input offset current drift (±) (typ) (µA/°C): 133, 150, 160, 200
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 14
Small-signal bandwidth (kHz): 250
Sensitivity error (%): 0.4
Sensitivity error drift (±) (max) (ppm/°C): 50
Propagation delay time (typ) (ns): 130
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 8.1
Clearance (min) (mm): 8.1
Isolation rating: Reinforced
Surge isolation voltage (VIOSM) (VPK): 10000
TMCS1107-Q1
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 具有内部基准、符合 AEC-Q100 标准的 ±420V 隔离式霍尔效应电流传感器
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 296
Sensitivity (typ) (mV/mT): 50, 100, 200
Input offset current (±) (max) (mA): 60, 75, 100, 160
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 296
Sensitivity (typ) (mV/mT): 50, 100, 200
Input offset current (±) (max) (mA): 60, 75, 100, 160
更多
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
TMCS1108-Q1
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 符合 AEC-Q100 标准且具有内部基准的 ±100V 隔离式霍尔效应电流传感器
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 71
Input offset current (±) (max) (mA): 60, 75, 100, 160
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5
Supply voltage (min) (V): 3
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 105
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Functional
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 71
Input offset current (±) (max) (mA): 60, 75, 100, 160
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5
更多
Supply voltage (min) (V): 3
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 105
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Functional

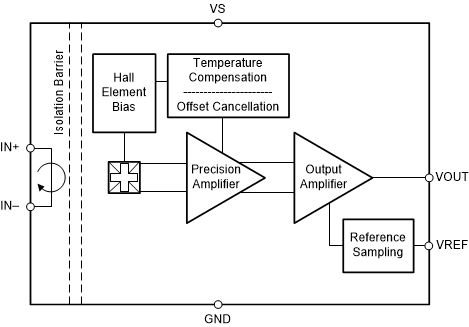

TMCS1100-Q1
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 符合 AEC-Q100 标准且具有外部基准的 ±600V 隔离式精密电流传感器
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 424
Input offset current (±) (max) (mA): 40, 47.5, 50, 60
Input offset current drift (±) (typ) (µA/°C): 0.1
Features: Externally Driven Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 5
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.2
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 424
更多
Input offset current (±) (max) (mA): 40, 47.5, 50, 60
Input offset current drift (±) (typ) (µA/°C): 0.1
Features: Externally Driven Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 5
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.2
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000
TMCS1101-Q1
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 符合 AEC-Q100 标准且具有内部基准的 ±600V 隔离式精密电流传感器
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 424
Input offset current (±) (max) (mA): 45, 50, 52.5, 60, 70, 80, 90, 100
Input offset current drift (±) (typ) (µA/°C): 0.1
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 5
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.3
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 424
更多
Input offset current (±) (max) (mA): 45, 50, 52.5, 60, 70, 80, 90, 100
Input offset current drift (±) (typ) (µA/°C): 0.1
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 5
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.3
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Automotive
TI functional safety category: Functional Safety-Capable
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000

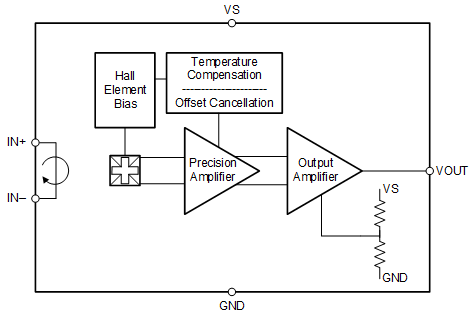

TMCS1108
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: ±100V basic isolation, 20Arms 80kHz Hall-effect current sensor with reference
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 71
Input offset current (±) (max) (mA): 8, 10, 12, 30
Input offset current drift (±) (typ) (µA/°C): 0.2
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5
Supply voltage (min) (V): 3
Iq (max) (mA): 5
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 105
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Functional
Surge isolation voltage (VIOSM) (VPK): 6000
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 71
Input offset current (±) (max) (mA): 8, 10, 12, 30
更多
Input offset current drift (±) (typ) (µA/°C): 0.2
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5
Supply voltage (min) (V): 3
Iq (max) (mA): 5
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 105
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Functional
Surge isolation voltage (VIOSM) (VPK): 6000
TMCS1107
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: ±420V basic isolation, 20Arms 80kHz Hall-effect current sensor with reference
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 296
Input offset current (±) (max) (mA): 60, 75, 100, 160
Input offset current drift (±) (typ) (µA/°C): 0.2
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 6
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 296
Input offset current (±) (max) (mA): 60, 75, 100, 160
更多
Input offset current drift (±) (typ) (µA/°C): 0.2
Features: Internal Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 6
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.9
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000
TMCS1100
数据:
分类: 敏感元器件和传感器(件) / 传感器件 / 电学量传感器件 / 电流传感器件
描述: 具有外部基准的 ±600V 基本隔离、20Arms、80kHz 霍尔效应电流传感器
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 424
Input offset current (±) (max) (mA): 40, 47.5, 50, 60
Input offset current drift (±) (typ) (µA/°C): 0.1
Features: Externally Driven Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 6
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.2
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000
Continuous current (max) (A): 20
Working isolation voltage (VIOWM) (Vrms): 424
Input offset current (±) (max) (mA): 40, 47.5, 50, 60
更多
Input offset current drift (±) (typ) (µA/°C): 0.1
Features: Externally Driven Zero Current Reference Voltage
Supply voltage (max) (V): 5.5
Supply voltage (min) (V): 3
Iq (max) (mA): 6
Small-signal bandwidth (kHz): 80
Sensitivity error (%): 0.2
Sensitivity error drift (±) (max) (ppm/°C): 50
Rating: Catalog
Operating temperature range (°C): -40 to 125
Creepage (min) (mm): 4
Clearance (min) (mm): 4
Isolation rating: Basic
Surge isolation voltage (VIOSM) (VPK): 6000
