INFINEON
Infineon 英飞凌专注于迎接现代社会的三大科技挑战： 高能效、 移动性和 安全性，为汽车和工业功率器件、芯片卡和安全应用提供半导体和系统解决方案。英飞凌的产品素以高可靠性、卓越质量和创新性著称，并在模拟和混合信号、射频、功率以及嵌入式控制装置领域掌握尖端技术。

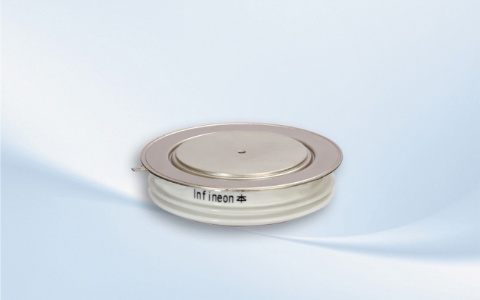

V[DRM]/ V[RRM (V)]: 5200.0V
I[TSM]: 79000.0A
I[TAVM]: 2980 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 150mm height 35mm / Ceramic
V[DRM] / V[RRM] [V]: 5200.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2980/85
I[TSM] [A](@10ms, Tvj max): 79000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 31000.0
V[T]/I[T] [V/kA](@Tvj max): 1.70/4.0
V[T0] [V](@T[vj max]) max: 0.77
r[T] [mΩ](@T[vj max]) max: 0.235
t[q] [µs]: 600.0
R[thJC] [K/kW](@180° el sin) max: 5.4
T[vj] [°C] max: 125.0
Clamping force [kn] max: 91.0

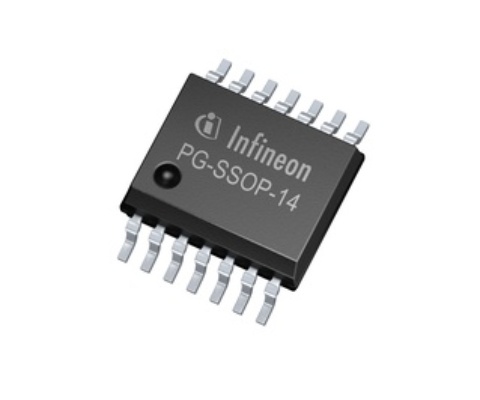

TLD1310EL
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路数据:
简介: LITIX™ Basic TLD1310EL is a three channel high side driver IC with integrated output stages
V[S] max: 40.0V
Output Current: 60.0mA
I[q]: 0.1µA
Operating Temperature max: 150.0°C
Topology: Linear
V[Q] (multiple): 40.0 V
Tolerance: 7%
Short Circuit Protection: Yes
Inhibit: Yes
PWM: Yes
Open Load Detection: No
Output Channels: 3.0
Control Inputs: 1.0
PWM engine: No
Feedback Output: No
Short GND Detection: No
Language: SPICE
Product Category: Automotive Lighting ICs
Family: LITIX™ Basic
Currently planned availability until at least: 2038

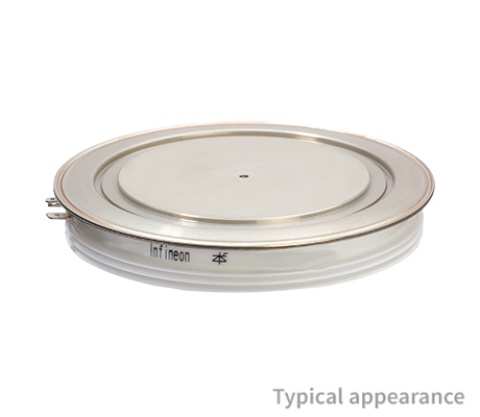

V[DRM]/ V[RRM (V)]: 5200.0V
I[TSM]: 79000.0A
I[TAVM]: 3200 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 150mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 5200.0
I[TAVM]/T[C] [A/°C](@180° el sin): 3200/85
I[TSM] [A](@10ms, Tvj max): 79000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 31000.0
V[T]/I[T] [V/kA](@Tvj max): 1.70/4.0
V[T0] [V](@T[vj max]) max: 0.77
r[T] [mΩ](@T[vj max]) max: 0.235
t[q] [µs]: 600.0
R[thJC] [K/kW](@180° el sin) max: 4.8
T[vj] [°C] max: 125.0
Clamping force [kn] max: 91.0

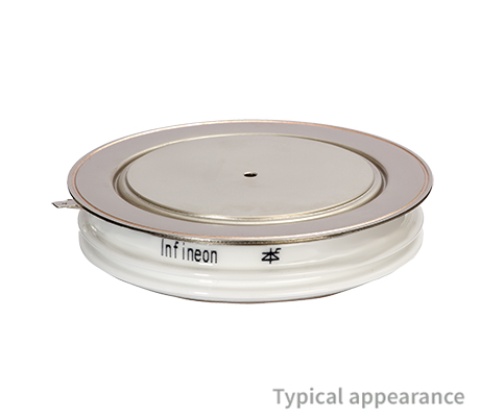

V[DRM]/ V[RRM (V)]: 8000.0V
I[TSM]: 65000.0A
I[TAVM]: 2100 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 150mm height 35mm / Ceramic
V[DRM] / V[RRM] [V]: 8000.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2100/85
I[TSM] [A](@10ms, Tvj max): 65000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 21100.0
V[T]/I[T] [V/kA](@Tvj max): 3.0/4.0
V[T0] [V](@T[vj max]) max: 1.24
r[T] [mΩ](@T[vj max]) max: 0.44
t[q] [µs]: 550.0
R[thJC] [K/kW](@180° el sin) max: 5.4
T[vj] [°C] max: 125.0
Clamping force [kn] max: 91.0

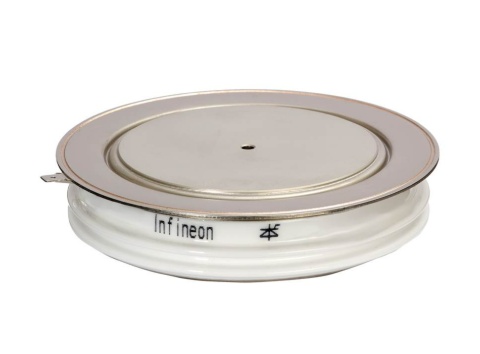

V[DRM]/ V[RRM (V)]: 8000.0V
I[TSM]: 65000.0A
I[TAVM]: 2260 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 150mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 8000.0
I[TAVM]/T[C] [A/°C](@180° el sin): 2260/85
I[TSM] [A](@10ms, Tvj max): 65000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 21100.0
V[T]/I[T] [V/kA](@Tvj max): 3.0/4.0
V[T0] [V](@T[vj max]) max: 1.24
r[T] [mΩ](@T[vj max]) max: 0.44
t[q] [µs]: 550.0
R[thJC] [K/kW](@180° el sin) max: 4.8
T[vj] [°C] max: 125.0
Clamping force [kn] max: 91.0

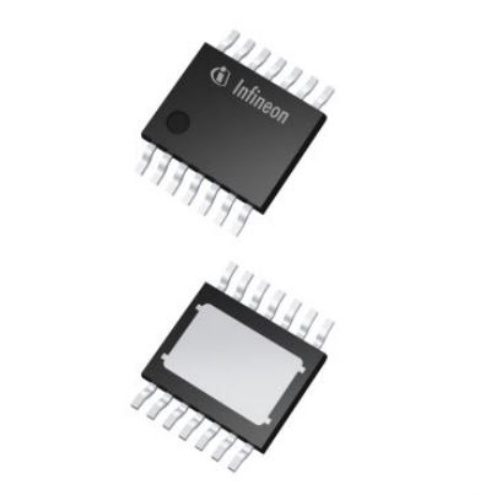

TLD2132-1EP
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路数据:
简介: The LITIX™ Basic+ TLD2132-1EP is a single channel high-side driver IC with integrated output stage
I[q]: 0.1µA
Topology: Linear
V[S] max: 40.0V
V[Q] (multiple): 40.0 V
Tolerance: 5%
Short Circuit Protection: Yes
PWM: Yes
Open Load Detection: Yes
Operating Temperature max: 150.0°C
Output Channels: 1.0
Control Inputs: 1.0
Power Offloading: No
PWM engine: No
Short GND Detection: Yes
Single LED short detection: Yes
Language: SPICE
Product Category: Automotive Lighting ICs
Output Current per channel max: 240.0mA
Parallelized Output Current: 240.0mA
Family: LITIX™ Basic+
Currently planned availability until at least: 2038

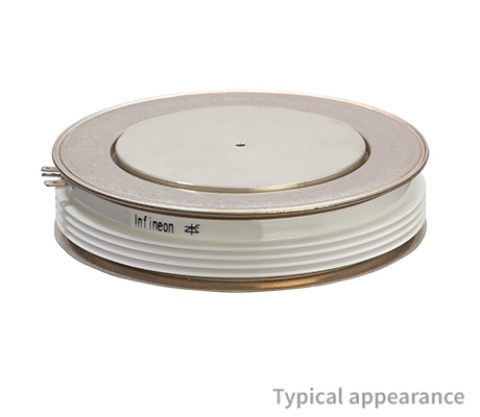

Clamping force [kn] max: 95.0
Configuration: Electrical Triggered Phase Control Thyristor
I[TAVM]: 4040 (180 ° el sin)
I[TAVM]/T[C] [A/°C](@180° el sin): 4040/85
I[TSM]: 57000.0A
I[TSM] [A](@10ms, Tvj max): 57000.0
R[thJC] [K/kW](@180° el sin) max: 7.74
T[vj] [°C] max: 125.0
V[DRM] / V[RRM] [V]: 1800.0
V[DRM]/ V[RRM (V)]: 1800.0V
V[T0] [V](@T[vj max]) max: 8.0
V[T]/I[T] [V/kA](@Tvj max): 1.28/6.0
r[T] [mΩ](@T[vj max]) max: 0.08
t[q] [µs]: 250.0
∫I2dt [A²s · 103](@10ms, Tvj max): 16245.0
Housing: Disc dia 120mm height 26mm / Ceramic
V[DRM]/ V[RRM (V)]: 600.0V
I[TSM]: 60000.0A
I[TAVM]: 3710 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 100mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 600.0
I[TAVM]/T[C] [A/°C](@180° el sin): 3710/85
I[TSM] [A](@10ms, Tvj max): 60000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 18000.0
V[T]/I[T] [V/kA](@Tvj max): 1.50/15.0
V[T0] [V](@T[vj max]) max: 0.75
r[T] [mΩ](@T[vj max]) max: 0.048
t[q] [µs]: 200.0
R[thJC] [K/kW](@180° el sin) max: 12.5
T[vj] [°C] max: 140.0
Clamping force [kn] max: 65.0
V[DRM]/ V[RRM (V)]: 1800.0V
I[TSM]: 57000.0A
I[TAVM]: 3160 (180 ° el sin)
Configuration: Electrical Triggered Phase Control Thyristor
Housing: Disc dia 111mm height 26mm / Ceramic
V[DRM] / V[RRM] [V]: 1800.0
I[TAVM]/T[C] [A/°C](@180° el sin): 3160/85
I[TSM] [A](@10ms, Tvj max): 57000.0
∫I2dt [A²s · 103](@10ms, Tvj max): 16245.0
V[T]/I[T] [V/kA](@Tvj max): 1.37/6.0
V[T0] [V](@T[vj max]): 0.85
r[T] [mΩ](@T[vj max]): 0.082
t[q] [µs]: 250.0
R[thJC] [K/kW](@180° el sin) max: 8.5
T[vj] [°C] max: 125.0
Clamping force [kn] max: 95.0

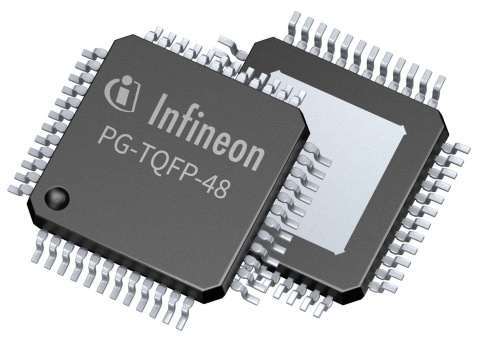

TLD5190QU
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路数据:
简介: The TLD5190QU is a synchronous MOSFET H-Bridge DC-DC controller with built in protection features
Topology: DC-DC Synchronous H-Bridge
f[SW] max: 700.0kHz
Tolerance: 3%
Short Circuit Protection: Yes
PWM: Yes
Dimming: Analog and Digital
Type: Buck-boost
V[S] max: 40.0V
