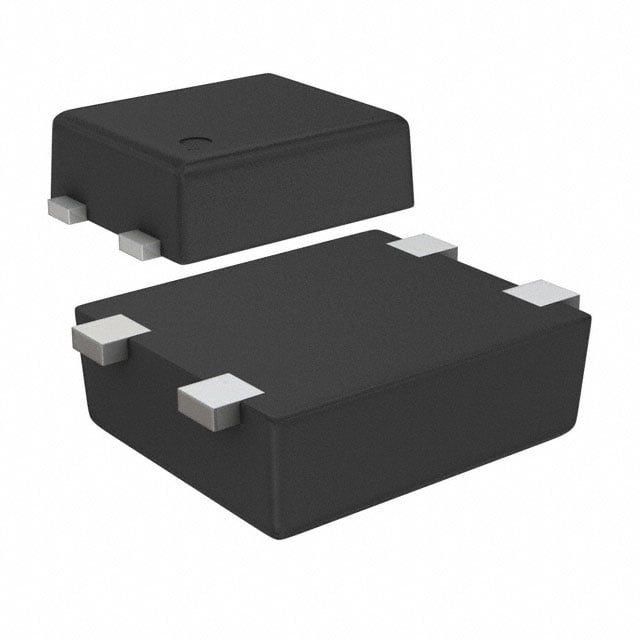

功能: 全极开关 技术: 霍尔效应 极化: 北极，南极 感应范围: ±6mT 跳闸，±5.5mT 释放 测试条件: 25°C 电压 - 供电: 1.6V ~ 3.5V 电流 - 供电（最大值）: 2µA 电流 - 输出（最大值）: 1mA 输出类型: 推挽式 特性: - 工作温度: -40°C ~ 85°C（TA） 安装类型: 表面贴装型 供应商器件封装: SNT-4A 封装/外壳: 4-SMD，扁平引线

Type: Latch Operate point (typ) (mT): 2.7, 6 Operate point (max) (mT): 5, 9 Release point (min) (mT): -9, -5 Supply current (µA): 2700 Bandwidth (kHz): 30 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 28 Rating: Catalog Operating temperature range (°C): -40 to 125 Output: Open drain Type: Latch Operate point (typ) (mT): 2.7, 6 Operate point (max) (mT): 5, 9 Release point (min) (mT): -9, -5 Supply current (µA): 2700 Bandwidth (kHz): 30 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 28 Rating: Catalog 更多

Type: Omnipolar switch, Unipolar switch Operate point (typ) (mT): 3 Operate point (max) (mT): 3.8 Release point (min) (mT): 1 Supply current (µA): 1.25, 1.37 Bandwidth (kHz): 0.01, 0.02 Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 5.5 Rating: Automotive Operating temperature range (°C): -40 to 125 Output: Open drain, Push-Pull output driver Type: Omnipolar switch, Unipolar switch Operate point (typ) (mT): 3 Operate point (max) (mT): 3.8 Release point (min) (mT): 1 Supply current (µA): 1.25, 1.37 Bandwidth (kHz): 0.01, 0.02 Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 5.5 Rating: Automotive 更多

Type: Latch Operate point (typ) (mT): 1, 3 Operate point (max) (mT): 1.7, 4 Release point (min) (mT): -4, -1.7 Supply current (µA): 6000 Bandwidth (kHz): 60 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 26 Rating: Catalog Operating temperature range (°C): -40 to 125 Output: Open drain Type: Latch Operate point (typ) (mT): 1, 3 Operate point (max) (mT): 1.7, 4 Release point (min) (mT): -4, -1.7 Supply current (µA): 6000 Bandwidth (kHz): 60 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 26 Rating: Catalog 更多

Type: Omnipolar switch Supply current (µA): 1.4, 1800 Bandwidth (kHz): 0.02, 20 Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 5.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Output: Push-Pull output driver Type: Omnipolar switch Supply current (µA): 1.4, 1800 Bandwidth (kHz): 0.02, 20 Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 5.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Output: Push-Pull output driver

Type: Omnipolar switch Supply current (µA): 1.3, 2, 16 Bandwidth (kHz): 0.01, 0.02, 0.216 Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 5.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Output: Push-Pull output driver Type: Omnipolar switch Supply current (µA): 1.3, 2, 16 Bandwidth (kHz): 0.01, 0.02, 0.216 Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 5.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Output: Push-Pull output driver

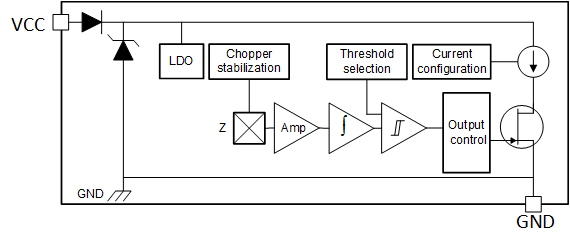

Type: Unipolar switch Operate point (typ) (mT): 4, 6, 10, 15 Operate point (max) (mT): 5, 7, 11, 16.1 Release point (min) (mT): 1, 3, 6.8, 11.4 Supply current (µA): 3500, 6000 Bandwidth (kHz): 40 Supply voltage (min) (V): 2.7 Supply voltage (max) (V): 38 Rating: Automotive Operating temperature range (°C): -40 to 150 Output: Current Type: Unipolar switch Operate point (typ) (mT): 4, 6, 10, 15 Operate point (max) (mT): 5, 7, 11, 16.1 Release point (min) (mT): 1, 3, 6.8, 11.4 Supply current (µA): 3500, 6000 Bandwidth (kHz): 40 Supply voltage (min) (V): 2.7 Supply voltage (max) (V): 38 Rating: Automotive 更多

Type: Omnipolar switch Supply current (µA): 3500 Bandwidth (kHz): 10 Supply voltage (min) (V): 2.7 Supply voltage (max) (V): 38 Rating: Automotive Operating temperature range (°C): -40 to 150 Output: Open drain TI functional safety category: Functional Safety-Capable Type: Omnipolar switch Supply current (µA): 3500 Bandwidth (kHz): 10 Supply voltage (min) (V): 2.7 Supply voltage (max) (V): 38 Rating: Automotive Operating temperature range (°C): -40 to 150 Output: Open drain TI functional safety category: Functional Safety-Capable

Type: 2D Latch Operate point (typ) (mT): 1.4, 3 Operate point (max) (mT): 2.6, 5.3 Release point (min) (mT): -5.3, -2.6 Supply current (µA): 6000 Bandwidth (kHz): 40 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 38 Rating: Automotive Operating temperature range (°C): -40 to 125 Output: Open drain Type: 2D Latch Operate point (typ) (mT): 1.4, 3 Operate point (max) (mT): 2.6, 5.3 Release point (min) (mT): -5.3, -2.6 Supply current (µA): 6000 Bandwidth (kHz): 40 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 38 Rating: Automotive 更多

Type: 2D Latch Operate point (typ) (mT): 1.4, 3 Operate point (max) (mT): 2.6, 5.3 Release point (min) (mT): -5.3, -2.6 Supply current (µA): 6000 Bandwidth (kHz): 40 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 38 Rating: Automotive Operating temperature range (°C): -40 to 125 Output: Open drain Type: 2D Latch Operate point (typ) (mT): 1.4, 3 Operate point (max) (mT): 2.6, 5.3 Release point (min) (mT): -5.3, -2.6 Supply current (µA): 6000 Bandwidth (kHz): 40 Supply voltage (min) (V): 2.5 Supply voltage (max) (V): 38 Rating: Automotive 更多
